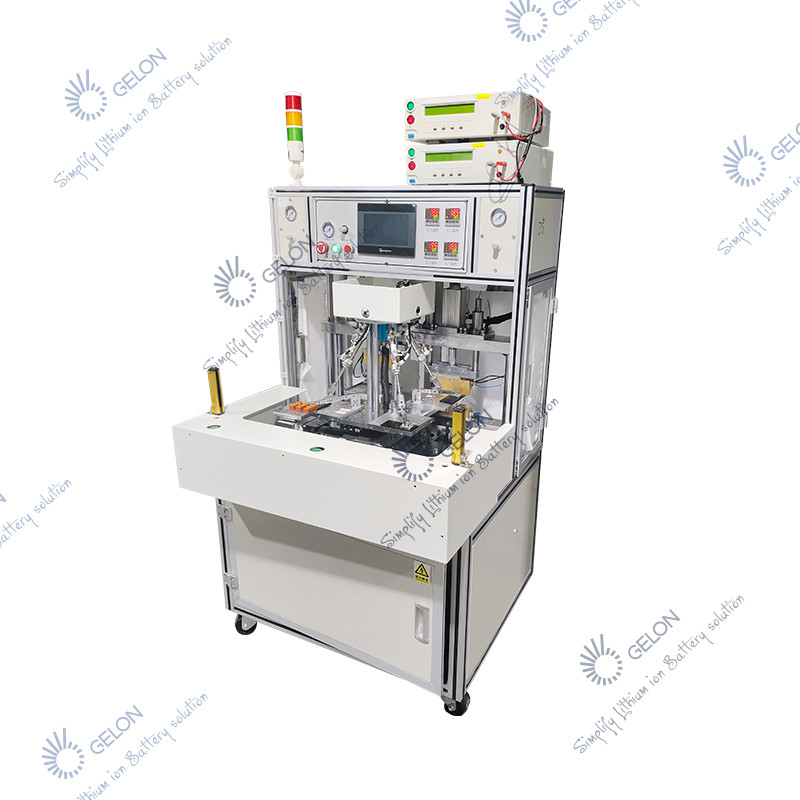

Battery Heat Sealer Rotary Top Side Sealing Machine Battery Assembly Machine Battery Sealer Machine

Functional Overview:

1. Suitable for heating packaging on the top and side of flexible packaging lithium batteries

Process flow:
2. The battery is loaded into the jig first, and the jig is placed on the positioning pin of the turntable at the loading position. The battery will be conveyed intermittently with the turntable, sequentially from the upper material position → the cylinder presses the battery body → top sealing → side sealing → down Material level, complete top-side sealing and side-side sealing at the corresponding station, take it out to the unloading position, and complete the top-sealing and side-sealing processes

Process performance:
a) Packaging temperature and packaging time can be preset
b) With low and high temperature alarm function
c) The battery is free of leaks or repeated packaging
d) Set up light curtain safety protection, rear door switch protection
e) The programmable controller PLC is used to realize automatic control, the touch screen realizes man-machine dialogue, and the operation and setting are convenient
f) Has output statistics function
g) With manual, automatic operation function, fault alarm function
h) Aluminum alloy profile frame
i) Equipment spraying color: according to the supplier's standard color sample (computer white)
j) The whole machine runs safely and stably, with reliable control and convenient operation.
