Vacuum Centrifugal Planetary Mixing Defoam Machine 1L 5L 10L
Battery Production Equipment
1. Product Introduction
This machine main function is stirring the material and material
evenly and removing the air bubbles in the material at the same
time.
The principle of stirring and defoaming: the centrifugal force is
generated by the way of rotation and revolution, the materials in
the container do planetary high-speed relative motion, and fully
stirred and mixed very fine and uniform; at the same time stirring,
the vacuum pump in the tank to generate a vacuum environment, the
air bubbles in the material will be sucked out; centrifugal force
and vacuum double effect together, bubbles removing faster and
cleaner.
Depending on the viscosity of the material and the processing
volume, the time required for each stirring and defoaming process
generally varies from a few seconds to minutes.
This machine can be equipped with different fixtures according to
different containers / products (the containers can be customized),
and the mixing volume can range from 1,000 to 20,000 grams, which
is suitable for all requirements from experiments to mass
production.
2. Technical parameters.
| Name | Centrifugal stirring defoaming slurry mixer |
| Mixing Method: | Revolution / Rotation / Vacuum , Non-contact mixing method /
Negative Vacuum method |
| PLC control : | Man-machine dialogue, Chinese interface, touch screen operation,
can edit and store more than 5 groups of programs |
| Run program: | Each group of program controlled in 5 stages: running time, working
speed, vacuum time, etc. |
Revolution speed | 0-1500prm, stepless speed regulation, arbitrary input according to
the actual needs of users, accuracy 1rpm (speed can be selected:
low rotation speed: about 0-1400 rpm, high rotation speed: 0-2800
RPM) |
Rotational speed | 0-1500prm, revolution /rotation is a 1:1 (fixed ratio), which is
not adjustable. (if other speed ratios or revolution rotation are
required, need to be customized.) |
| Vacuum negative pressure | -100KPA (absolute vacuum) = - 0.999MPa (relative vacuum) = 0.1mbar.
(vacuum can be customized if necessary) |
| Vacuum pumping capacity | 21m³/h |
| Continuous rotation time | 30min (can follow the arbitrary timing 0-9999 hours, accuracy is
1S) |
| Max. stirring capacity | 900ml /Tank * 2 = 1800ml (can be customized.) |
| Max. QTY of Tank | 2 tanks (can be customized if more tanks ), left and right balanced
double stirring chambers, 45 degree bevel |
Precision Quality | During the 12-hour operation of the equipment, the glue flow is
uniform, no glue layering, no bubbles leading to abnormalities, no
pollution, no damage to material properties |
| Heating | No (heating is required can be customized) |
| Refrigeration | No (need refrigeration can be customized) |
| Power supply | 220V380V (optional) 50-60HZ |
| Power | Running power 2.95KW, standby power: 50W. |
| Size | L 850* W850* H1050 MM,Weight 180KG |
| Safety door lock | Emergency stop switch, explosion-proof ≥ DIIBT4. |
| Auxiliary functions | three-color operation indicator, self-balancing level, emergency
buzzer alarm. |
3:Features and application fields:
- The planetary vacuum defoaming mixer is simple in operation,
convenient in maintenance and low in after-sales cost.
- Beautiful: unique appearance design, the body material is 3mm steel
plate baking varnish (stainless steel can be selected), and the
compartment door is 20mm transparent acrylic plate, which is
beautiful, generous, stable and durable.
- Safety: the machine compartment door is equipped with a safety
mechanical lock, which automatically locks when the machine is
running and cannot be opened. It can only be opened when the
machine is stopped; If the mechanical lock is not locked, the
machine cannot operate to protect the safety of operators; The
agitating defoaming bin body is made of 8mm aviation aluminum alloy
pressed and hardened. It is explosion-proof, high-pressure
resistant, light in weight, rust free, dust free and
corrosion-resistant. It can be used for decades.
3.4 Application: silver paste, epoxy resin, solder paste, silica
gel, adhesive, conductive adhesive, ink, LCD, phosphor, LED
packaging, medicine, lithium battery anode and cathode materials,
polymer materials and all materials that need to be stirred and
mixed to remove bubbles.

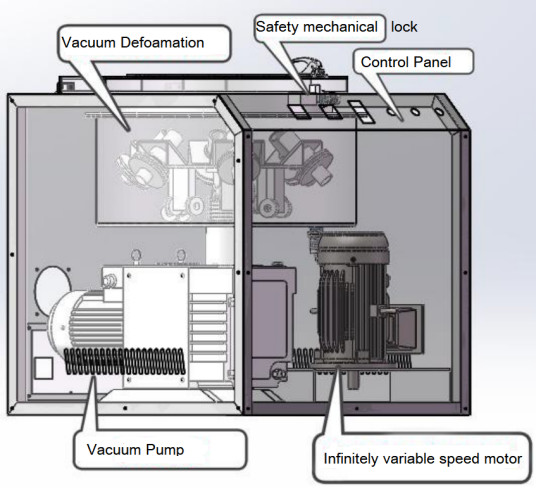

4.Main configuration
(The key parts are imported configuration and domestic big brand to
ensure the long and smooth operation of the machine)
Haibao servo motor: 750W, 2800 rpm, Taiwan Shihlin frequency
converter, PLC: Taiwan Delta,
Germany Busch vacuum pump: 750W NSK bearing imported from Japan,
Other switch electronic components: TECO and other domestic famous
brands;
Gear: imported wear-resistant and heat-resistant nylon gear, less
noise and more durable
