    Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN- ALF
    Certification : Ce
    Price : USD18/㎡
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 ㎡/Month
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

    Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material


    1. Product Description

    #Aluminum Laminated Film for Lithium Ion Battery #Pouch Cell Case Material #Laminated Aluminum Foil

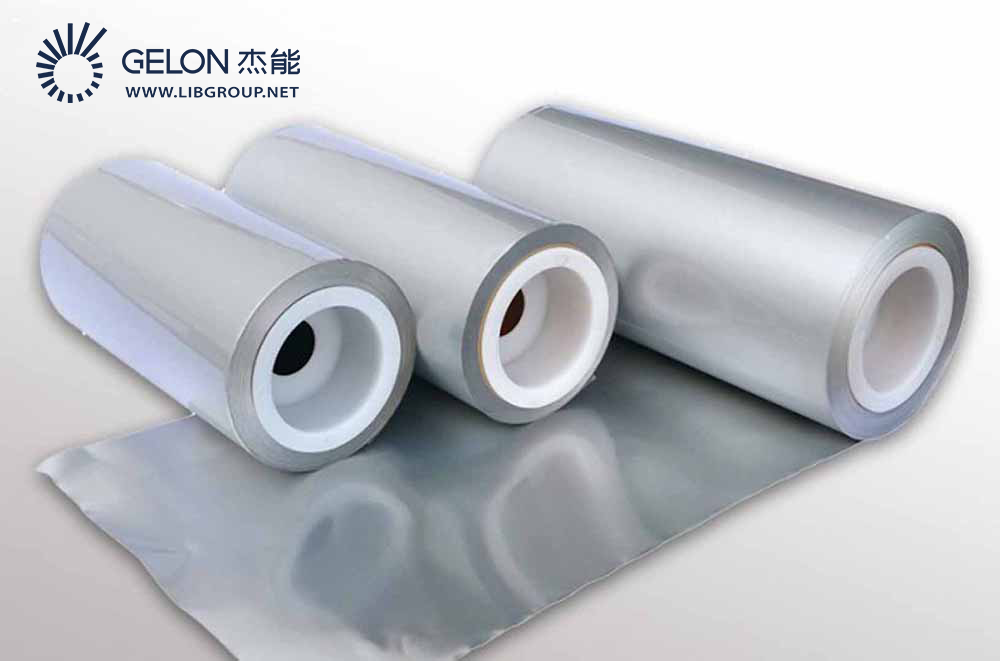

    Aluminum laminated film is one of the five major materials of lithium ion battery, and it is pouch lithium battery packaging material. The aluminum laminated film consists of outer nylon layer/adhesive/intermediate aluminum foil/adhesive/internal heat seal layer.
    Thickness: 88micron, 113micron,153micron
    Width: 400mm
    Length:300meters
    2. Product Parameters
    Product Specifications
    Material
    Aluminum Laminated Film ( Shodex)
    Thickness
    113μm
    Width
    400mm
    Length
    Length 7.5m 50m
    Material & Composition
    Polyamide (JIS Z1714)
    0.025mm(+-0.0025mm)
    Adhesive(Polyester-polyurethane)
    4-5g/ m²
    Aluminum foil (JIS A8079,A8021)
    0.040mm(+-0.004mm)
    Adhesive (Urethane-free Adhesive)
    2-3g/m²
    Polypropylene
    0.040mm(+-0.004mm)
    Quality inspection
    Surface quality
    Mat finish
    Pinholes
    Subject to the applicable aluminum foil standard
    Impurity
    1mm or less in diameter
    Fish eye
    2mm or less in diameter(clear),1mm or less in diameter(coloured)
    Molding Depth
    ≥5.0mm
    Electrical Insulating
    Good
    Heat Sealing Condition
    180-190°C
