    Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-18650/21700/26650/32650
    Certification : Ce
    Price : USD0.3-0.6/ set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000sets per month
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

    Lithium battery case 18650/26650/21700/32650 Empty Cell Cans

    1. Product Description

    #Battery Case #Lithium battery case 18650/26650/21700/32650 #Cylinder Empty Cell Cans

    Materials:
    Case and cap are made of nickel plated A3 stell
    Seal O-ring and spacer are made of nylon
    Insulating gasket is made of PET
    CAP :
    Cap with Built-in PTC Thermistor for overcurrent protection
    Material * Case and cap are made of Nickel plated A3 steel
    * Seal O-rings are made of nylon
    * Insulating gasket is made of PET

    2. Product Parameters
    18650 cylinder cell cases
    Cap
    Cap with Built-in PTC Thermistor
    Dimensions (Dia x Height)
    * Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
    * Top Cap: 17.5mm(D) x 4.05mm(H)
    * Top Insulator: 12.5mm(D) x 0.19mm(H)
    * Bottom Insulator: 12.5mm(D) x 0.19mm(H)
    Materials
    * case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
    Weight
    9.50 g/pcs
    Note
    Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure if over 2.5MPa to ensure no explosion from the can)
    21700 cylinder cell cases
    Dimensions (Dia x Height)
    * Case: 21.2mm (OD) x 20.7mm (ID) x 73.1mm (H)
    * Top Cap: 20.4mm (D) x 4.2mm (H)
    Materials
    * case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
    Weight
    * 8.455 g/pcs
    Note
    * Safety valve's open pressure: 1.8 - 2.4MPa (the cap valve will open to release interior high pressure if over 2.4MPa, to ensure
    the can do not explode)
    26650 cylinder cell cases
    Dimensions (Dia x Height)
    * Case: 26mm(OD) x 25.5mm(ID) x 68mm(H)

    * Top Cap: 25.5mm(D) x 5mm(H)
    Materials
    * case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
    Weight
    * 18.75 g/pcs
    Note
    * Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no
    explosion from the can)
    32650 cylinder cell cases
    Dimensions (Dia x Height)
    * Case: 32mm(OD) x 31.5mm(ID) x 68mm(H)
    * Top Cap: 31.5mm(D) x 5.3mm(H)
    Materials
    * case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
    Weight
    * 28.85g/pcs
    Note
    * Min. order: 60 pcs per package

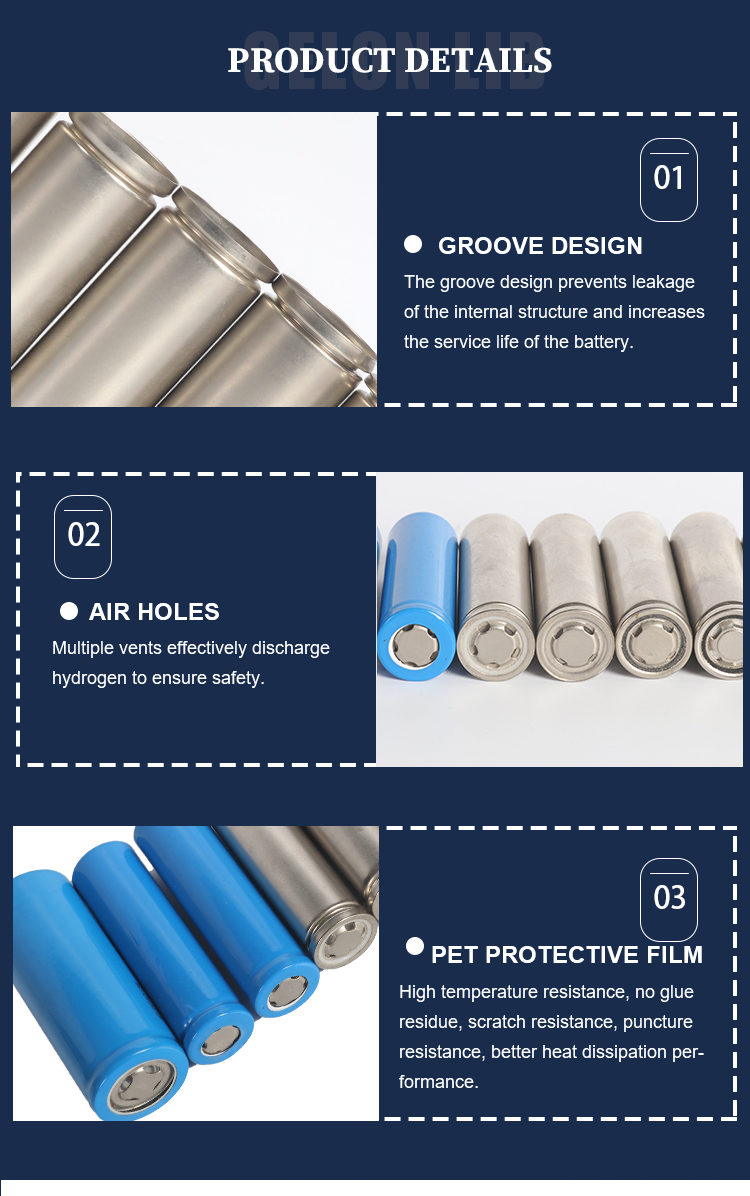

    3. Product Details
