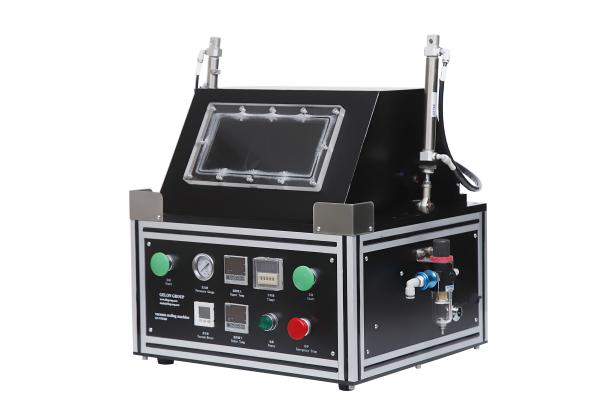

Battery Vacuum Pre-sealing Machine Pouch Cell Assembly Equipment With Competitive Price

PRODUCT FEATURE

1. The cavity is made of aluminum alloy, corrosion-resistant and structurally sound;

2. The vacuum is adjustable up to -90kpa ~ 0 (buyer's own vacuum pump);

3. The head temperature: room temperature to 250 ℃, the temperature is adjustable;

4. Temperature control accuracy:±3℃;

5. Heat sealing pressure:0~7Kg/cm2 adjustable;

6. Heat sealing time:0~99 seconds adjustable;

7. Edge width:5mm(According to customer requirements);

8. Maximum edge sealing size:200mm;

9. Head parallel: sanlian non-carbon carbon paper, head pressure is 0.6 MPa, the temperature at 200 ℃ seal of uniform

10. Air consumption: about 0.2l compressed gas/each time for sealing.

11. Air pressure working speed:≥180 times/h

12. Power: 800w heating pipe is adopted, and the power consumption is about 1.6kw when heating.

13. Power supply:220V/50Hz;

14. Power:1.7KW;

15. Weight:56.5KG

16. Compressed air source:0.6~0.8Mpa;
