    Lithium Ion Battery Electrode Roller Pressing Machine Hydraulic Calendaring Machine

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-650
    Certification : CE
    Price : 80000-300000USD
    Payment Terms : L/C, T/T
    Supply Ability : 30sets one month
    Delivery Time : 3months
    • Product Details
    • Company Profile

    Lithium Ion Battery Electrode Roller Pressing Machine Hydraulic Calendaring Machine

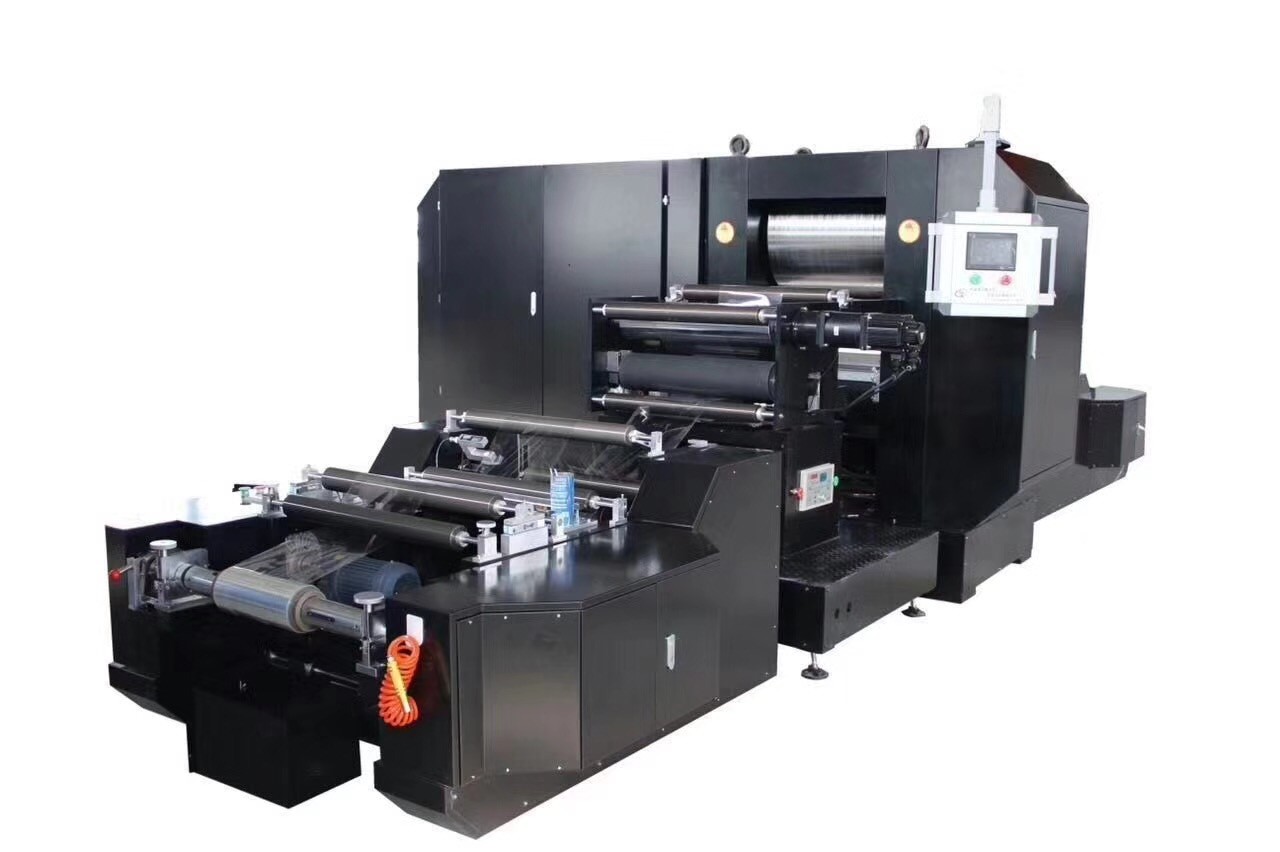

    Lithium ion battery roll to roll electrode roller pressing machine continuous hydraulic calendaring machine


    PRODUCT FEATURE


    • It's an automatic roll to roll calender press system with precision digital pressure control for battery electrode production.
    • It has 450mm width and 400 diameter high strength alloy rollers and can produce electrode up to 400mm width at 30 m/min max speed.

    SPECIFICATIONS


    Power12 KW Max
    Working voltageAC 380V 50 Hz Three Phase
    RollersDimensions: 400mm(Dia.) X 450mm(w)
    Effective rolling width100-400mm
    Press gap0-2mm adjustable
    Rolling speed0-20 meter/minute adjustable by touch screen control panel

    Lithium Ion Battery Electrode Roller Pressing Machine Hydraulic Calendaring Machine
