    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-DP250S
    Certification : CE
    Price : USD8700/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 pcs/month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

    Pouch Cell Electrode Semi-Auto Stacking Machine Assembly Equipment
    Product Description
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

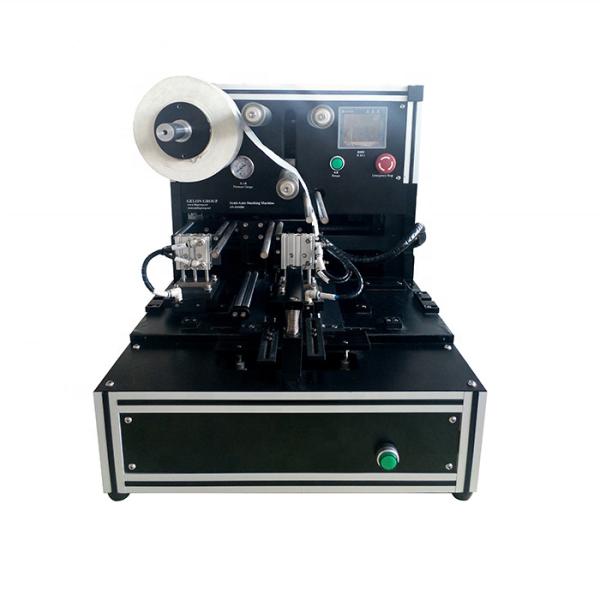

    Laboratory semi-auto stacking machine
    This equipment is suitable for the stacking process of lithium-ion battery electrodes. The equipment adopts a tension roller structure design, automatic constant tension control of the coil separator, and a motor driven left and right movement to achieve a zigzag stacking. This reciprocation realizes the stacking assembly of the entire battery cell. The separator discharge adopts constant tension, and there is an electrode automatic correction function during the discharge process, and the discharge is neat and consistent; it has the characteristics of high stacking efficiency and high stacking precision. Different electrode sizes can be realized by adjusting the fixture, which is suitable for the research and development and sample production of stacking lithium-ion batteries.
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly EquipmentPouch Cell Electrode Semi Auto Stacking Machine Assembly EquipmentPouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

    SPECIFICATIONS FOR POUCH CELL STACKING MACHINE
    Max rolls for separator
    φ250mm
    Electrode size
    L(0-200)mm, W(0-200)mm
    Fixed Travel Distance
    400mm
    Power
    AC220V/ 50Hz
    Air Source
    0.5MPa
    Stacking Platform
    L650mmW400mmH700mm
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment
    Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment
