    Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-MR-100H
    Certification : CE
    Price : $2800
    Supply Ability : 100set/month
    Delivery Time : within 15 days
    • Product Details
    • Company Profile

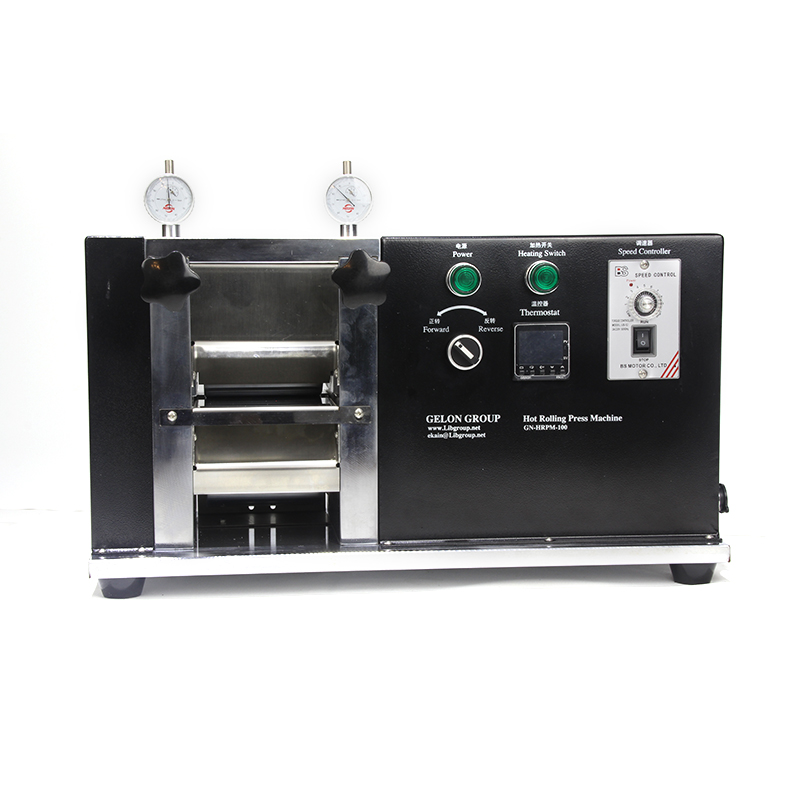

    Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine

    lithium ion battery laboratory equipment 100mm width Small hot rolling press machine


    NameParametersRemarks
    Roll diameterΦ96mm
    Roll gap0~1.2 mm(can be adjusted)
    Roll width100mm
    Roll effective width95mm
    Roll gap adjust precision0.01mm
    Up/down roll heating temperatureSuggest heating temperature: 60℃-80℃Roll heating temperature Max:200℃
    Roll materialS136
    Roll hardnessSurface hardness ≥HRC55° Hardness layer thickness≥10mmHardness decays after heating at 200℃<5%
    Roll drivingUse special motorCan be used under argon gas
    SpeedMax.50mm/sCan be adjusted
    Power supplyAC220V/50Hz.110V/60HzCan be customized according to customer requirements
    Power1800W
    Equipment sizeAbout L550*W250*H390mmFiller gauge size included
    Package sizeAbout L650*W340*H510mm
    Net weightAbout 65kg
    Gross weightAbout 74kg
    Use the venueIt can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.
    Warranty1 year warranty, lifetime maintenance


    1 Standard exported package : Internal anticollision protection, external export wooden box packaging.

    2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
