    Electric Coin Cell Battery Crimping Machine Sealing Machine For Coin Cell

    Ask Lasest Price
    Brand Name : GELON
    Model Number : GN-CC20E
    Certification : CE
    Price : USD2500-2800/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000sets/month
    Delivery Time : 25-30days
    • Product Details
    • Company Profile

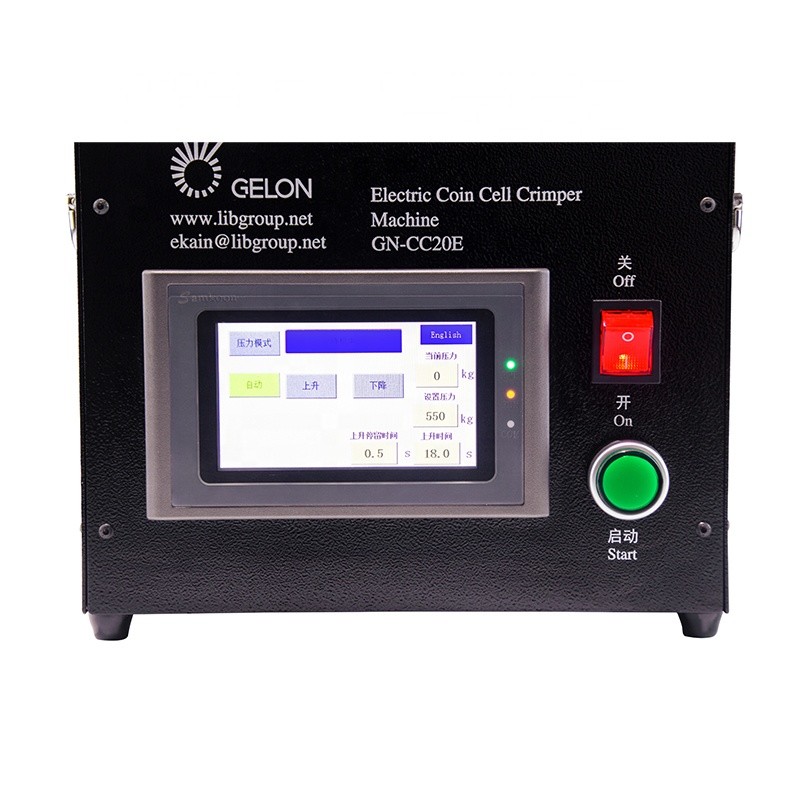

    Electric Coin Cell Battery Crimping Machine Sealing Machine For Coin Cell

    Electric Coin Cell Battery Crimping Machine Sealing Machine for Coin Cell CR20XX Series cases
    1. Equipment Introduction This equipment is mainly used for button battery sealing and button battery disassembly. This equipment can only choose one (sealing/disassembling) mold as standard. It is mainly driven by motor. After putting the battery into the mold, start the motor button , The upper and lower molds are automatically closed, and the battery is sealed and formed. It is used in the production of samples for the research and development of battery materials in the laboratory, and the research and sealing of button batteries and capacitors. It can also be used for small batch trial production in factories. Dies with different configurations can also be used for dry powder tableting, wet powder tableting, foam nickel pressing, pressing molding, riveting and other operations.
    2. Equipment Features 1. Touch screen operation, easy parameter setting and high degree of automation. 2. The sealing pressure value can be set and displayed. 3. It adopts electric drive, and the battery seal has no vibration and no leakage. 4. Configured with different molds, button batteries of different specifications can be encapsulated and disassembled, so that one machine can be used for multiple purposes. 5. Precise mold design ensures accurate and reliable sealing molding, stable and safe use. 6. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding and so on.
    Name
    Parameters
    Sealing pressure adjustable range
    Min.80Kg, Max.1400Kg
    Sealing stroke
    30mm
    Pressure Accuracy
    ±1.5%
    Sealing Efficiency
    20 second/piece
    Power supply
    AC220V/50Hz.110V/60Hz
    Equipment dimension
    About L240*W190*H450mm
