High-Power Ultrasonic Welding Machine Pouch Cell Battery Machine

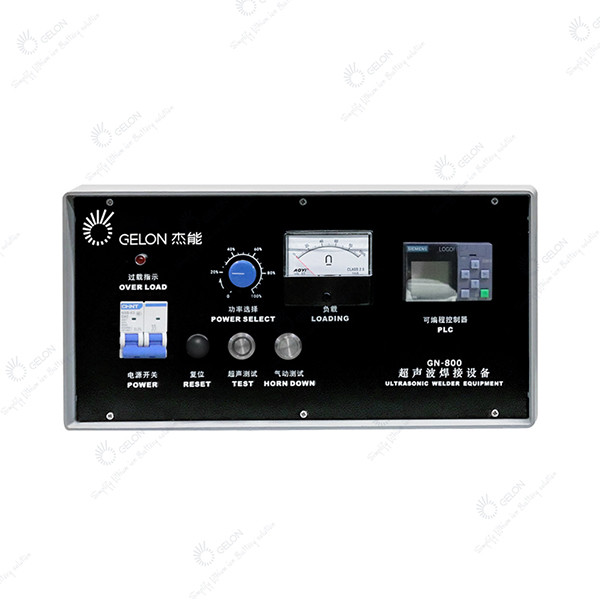

GN-800 is a ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories.This welder is suit for max.of 20 layers electrodes welding.(If you need more layers welder,pls contact us).

Index:

1. Input voltage: 220V AC 50Hz
2. Max. Power Consumption:0-800W
3. Welding Area:4mm(L) x 4mm(W)
4. Ultrasonic Frequency:30 - 40 kHz Adjustable frequency
5. Pneumatic Control:Air pressure at 0.5-0.8MPa (Air Compressor is not included)

Items and Specifications:

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Gelon Teams since 2003 engaged in battery business,Enterprises from the initial Ni-MH battery production extends to the production of lithium ion battery materials and battery . Most of the senior management staffs graduated from China's most famous electrochemical professional --CENTRAL SOUTH UNIVERSITY, from which created a lot of leaders in Chinese lithium ion battery industry such as Mr ChuanFu Wang(BYD),Mr XinDe Xia, Mr KaiHua Xu, Professor GuoRong Hu and XinHai Li Etc. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. Gelon Focus on manufacturing and selling of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LFP), Lithium Manganese Dioxide(LMO), Lithium Cobalt Oxide(LCO), Lithium Nickel Manganese Cobalt Oxide(NMC), Lithium Nickel Aluminum Oxide(NCA) ,Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) , Separator & Other accessories (SBR CMC NMP PVDF,Sup-Li,Al&Ni Tabs )etc for new power lithium ion batteries. Meanwhile, we have our own lithium ion battery factory who mainly produces lithium ion battery for camera, mobile, EV application. Based on our battery production line, we can offer all services (Raw Materials, Equipments, Production line design &Technology, etc. ) for full set of equipments to help clients to set up Lab & Pilot line for lithium ion battery. Bynow, Gelon have finished many turn key project in Bolivia,Indonesia, Indian, Russia,Turkey and South Africa We have a more than ten years professional and experienced exporting teams to supply perfect services for all our customers. We are confident on our quality and service.And ensure to offer the best services based on our specialty and empressement. Our Aim is to be the comprehensive company dealing with One-Stop services for Lithium ion battery in the world. Our Business Philosophy: You choose us, We promise you What we offer to you,are what we are using Integrating the quality resources in China, delivering the best service and products to you. The best product we can provide, is our sincerity and reliability.
