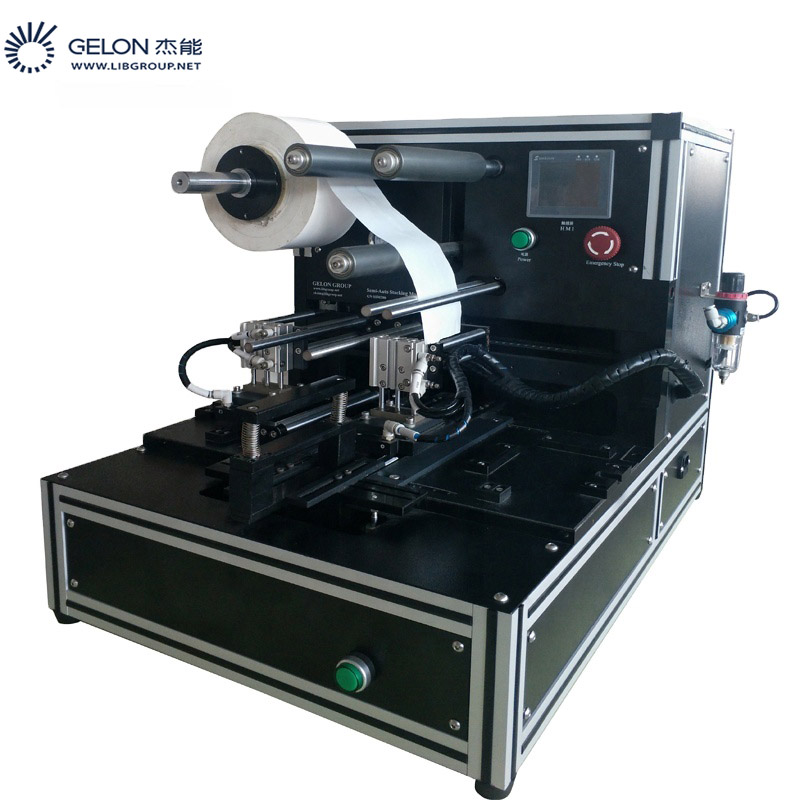

    Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-DP200S
    Certification : CE
    Price : 8100usd-8500usd
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100sets /month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Pouch Cell Electrode Pouch Cell Battery Assembly Semi Auto Electrode Stacking Machine

    Semi-auto Electrode Stacking Machine for Pouch Cell Assembly Battery Electrode

    SPECIFICATIONS FOR POUCH CELL STACKING MACHINE
    φ250mm Maximum installed diaphragm roll
    φ250mm
    Applicable pole piece specifications
    long (0 ~ 200) mm
    wide (0 ~ 200) mm
    Diaphragm width
    200mm
    Pendulum roller moving stroke
    400mm
    Correction accuracy
    0.05mm
    Power supply
    AC220V/50Hz
    Air pressure source
    0.5MPa ~ 0.7MPa
    Equipment size
    L465mm × W585mm × H540mm
