Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

    Buy cheap Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment from wholesalers

    Buy cheap Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment from wholesalers
    • Buy cheap Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment from wholesalers

    Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-GB-1
    Certification : ce
    Price : USD22K/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/month
    Delivery Time : 15days
    • Product Details
    • Company Profile

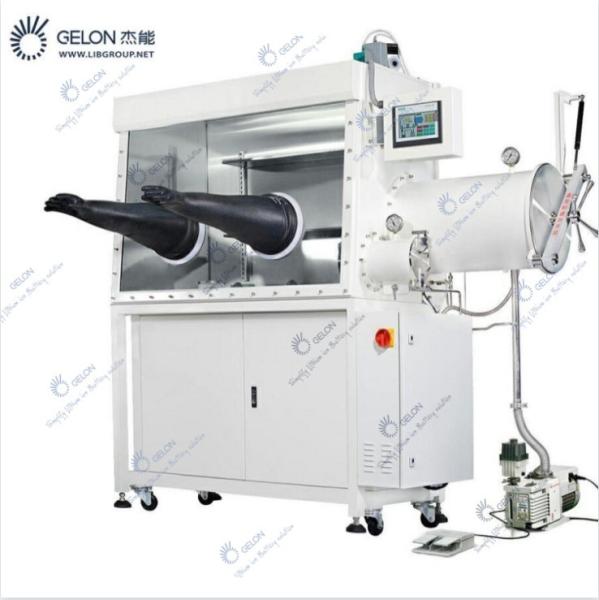

    Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment

    Vacuum Glove Box Single Working Station Pouch Cell Assembly Equipment

    Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment


    The Inert Gases will be closed recirculation by Fan and Cleaner, to continuously remove water and oxygen. The materials for dehydration and deoxidization can be regeneration by programmed control. Gasreplacement can be taken by automatic controlled cleaning valve. Box Pressure Control Pressure inner box has PLC controlling, working pressure (+/- 10mbar) can be freely set and auto-protected (exceeding +/- 12mbar).
    Closed Box (With Gradient Worktop and Dismountable Safe Glass Window), Pass Box,
    Cycling Scavenging Unit, PLC & Touch Panel, Vacuum System, Display System,
    Holder, etc.
    Including:
    1 sets of st. st#304 box, thickness: 3mm, corrosion resisting.
    1 sets of vacuum passing box. Dia.: 360mm, Length: 600mm, right side.
    1
    sets of small passing box. Dia.: 100mm, Length: 300mm, right side.
    1 glass
    windows with 2 gloves ports
    1 pairs of butyl rubber gloves.
    1 sets of lighting system.
    1 set of power interface inner box
    1 sets of high-powered cycling fan.
    1 vacuum pumps
    PLC & Touch Panel
    3 blind flange
    Stand wheel
    Foot Switch
    water analyser
    oxygen analyser
    Material:
    304st.st.,Thickness: 3mm
    Internal surface :
    Stainless steel wiredraw treat
    Outside surface:
    Painting,White
    Inner Dimension:
    L: 1220mm Depth:750mmH: 900mm
    Box lighting:
    Fluorescent lamp, set above the window.
    Filter:
    0.3 micron (0.12 micron optional), 1 gas entrance and 1 gas exist.

    Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing EquipmentSingle Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing EquipmentSingle Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment


    Quality Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment for sale
