    High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-HS200
    Certification : CE,ISO
    Price : USD1260/PCS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100Pcs/days
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    High quality Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell

    Product Description

    1) The machine can be used for different sizes batteries and can be adjusted easily by speed governing (or changing) clamps or adjusting (or changing ) end cover.

    2) Top and bottom end covers are drove by two cylinders, moving elastically.

    3) The cover is made of cooper material, having good heat effectiveness and saving electricity.

    4) The pressure of top end cover can be adjusted by valve regulation.

    5) The temperature of top and bottom end covers can be adjusted by temperature controller.

    6) The machine has the warning function on temperature anomaly.

    7) The Machine has great protective function with safety light curtain and double buttons protection.

    8) The machine has PLC controller for easily operating. It's light for carrying.

    9) The machine's rack is made of aluminium with good-looking. It can take manual operation while testing machine and take PLC auto-operation while bulk producing.

    Machine Specification:
    NameModel/SpecNameModel/Spec
    Suitable size≤200*200*12MMDimension450×300×400MM
    Production capacity600EA/HWeight37KG
    degree of parallelism of sealing head±0.01mmInput power supplyAC220V 50HZ
    Sealing width8MMPower1.0KW
    Temperature error±2°CInput air source0.6Mpa
    Compressed air pipe diameterΦ8MMRH20~90%RH
    suitable thickness of aluminium film0.1-0.3MMCurrent temperature10~35°C
    Sealing methodSoft sealing

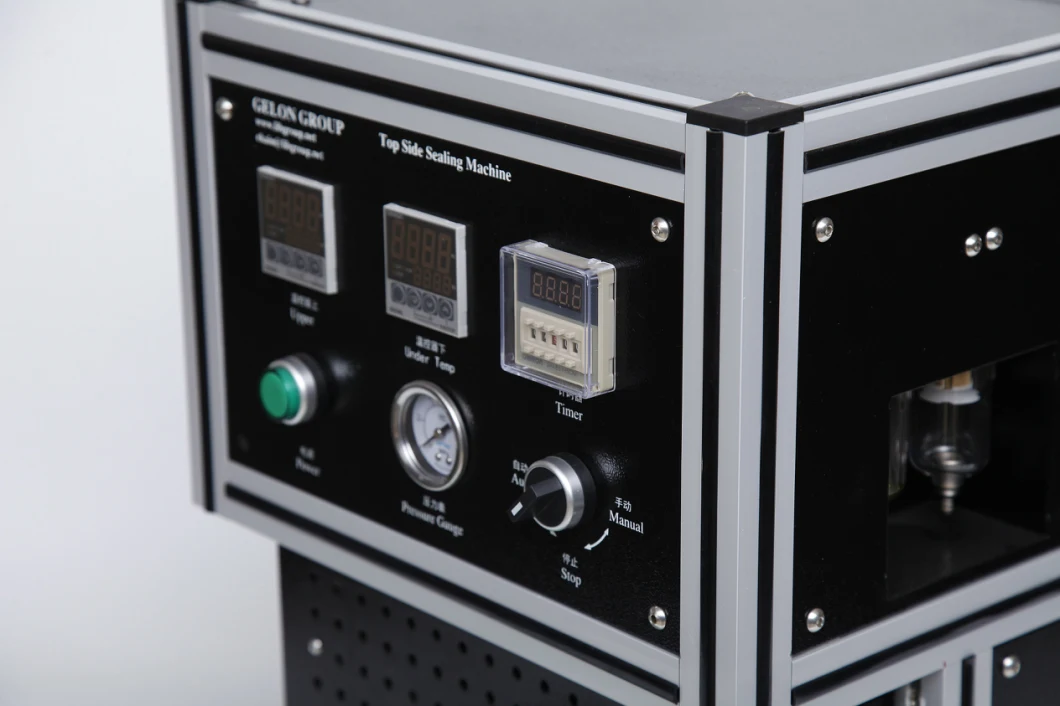

    Picture:

    Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell Aluminum Laminated Film Top and Side Lab Sealing Machine for Pouch CellAluminum Laminated Film Top and Side Lab Sealing Machine for Pouch Cell




    Lithium Ion Battery Cathode Production Materials Licoo2 Lco Powder
    We could supply one stop solution ( turn key project) for you.

    1.Full set of lithium battery materials,including :
    LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

    2.Full set of lithium battery equipments,for example:
    mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

    3.Full set of lithium battery technology.
    we can design the laboratory and production line,according to customer's request.
