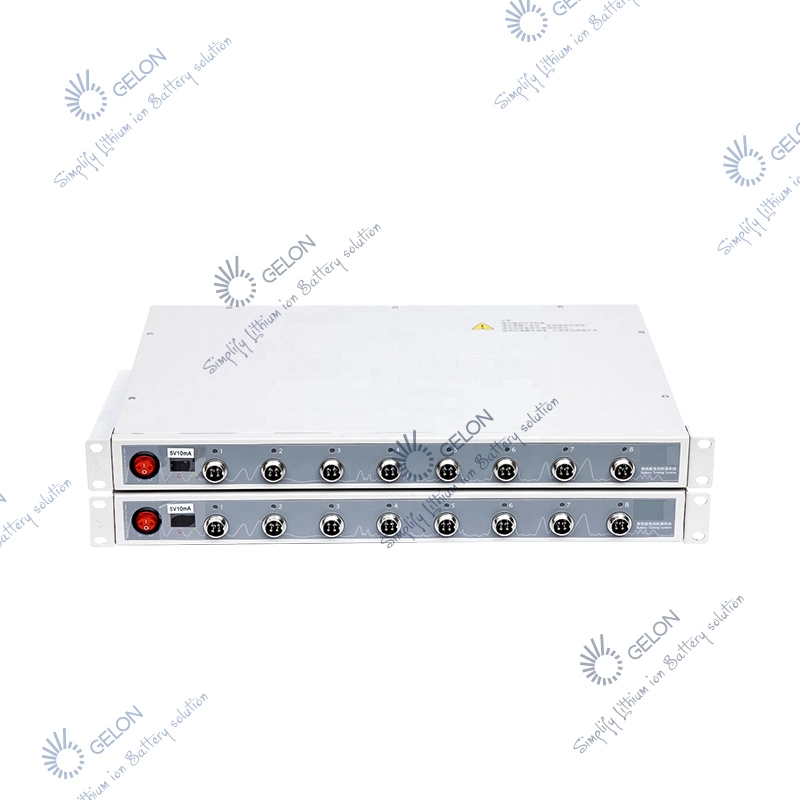

    Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-5V6A
    Certification : CE,ISO
    Price : USD1260/PCS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100Pcs/days
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing

    Product Description

    Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing

    Product Description

    1, the initialization of the battery (charging)
    2, the battery load voltage measurement
    3, battery AC resistance measurement
    4, the battery discharge performance test
    5, battery discharge protection function detects overcurrent
    6, the battery short-circuit protection function tests
    7, the battery charging performance detection Detection
    8, the resistance (to identify resistors, thermistors, VFR or CFR resistance) test
    9, the auxiliary battery voltage (eg HDQ voltage) detection
    10, the insulation resistance testing

    Detailed Photos

    Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing Gn-4002Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing Gn-4002Lithium Battery Integrated Tester Analyzer for Battery AC Resistance Testing Gn-4002

    Product Parameters

    Supply voltage: 220V ± 10% 50Hz-60Hz
    Power consumption: 50W maximum
    Weight: Weight 3.7Kg
    Instrument Size: 260mm × 290mm × 110mm (LWH)
    Package size: 360mm × 360mm × 160mm (LWH)

    Item

    Test range

    Resolution

    Accuracy

    battery voltage

    0-10V

    0.0001V

    ±( 0.05%RD+0.2mV)

    0-20V

    0.0001V

    ±( 0.05%RD+0. 3 mV)

    Internal Resistant

    0- 1 000mΩ

    0.1 mΩ

    ±(0. 1%RD+0.5m Ω )

    Electric current

    0-15A

    0.001A

    ±( 0. 1 %RD+ 5 mA)
    Resistance
    0-1KΩ

    0.001 KΩ

    ±( 0.5%RD+0.005 KΩ )

    1KΩ-10 KΩ

    0.001 KΩ

    ±( 0.5%RD+0.005 KΩ )

    10 KΩ-100 KΩ

    0.01 KΩ

    ±( 0.5%RD+0.05 KΩ )

    100 KΩ-1MΩ

    0.1 KΩ

    ±( 0.5%RD+0.5 KΩ )

    Boost Voltage

    0-5V

    0.0001V

    ±( 0.1%RD+0.001V)

    Insulated resistance

    0-100 MΩ

    0.01 MΩ

    ±(0. 1%RD+0.05M Ω )

    Lithium Ion Battery Cathode Production Materials Licoo2 Lco Powder
    We could supply one stop solution ( Turkey project) for you.

    1.Full set of lithium battery materials,including :
    LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

    2.Full set of lithium battery equipments,for example:
    mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

    3.Full set of lithium battery technology.
    we can design the laboratory and production line,according to customer's request.
