    High quality Single Working Station Vacuum Glove Box Battery Machine Gn-GB-1 Glove Box for Lithium Battery

    Ask Lasest Price
    Brand Name : Gelon
    Model Number : GN-01
    Certification : CE,ISO
    Price : USD1580/PCS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100Pcs/days
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

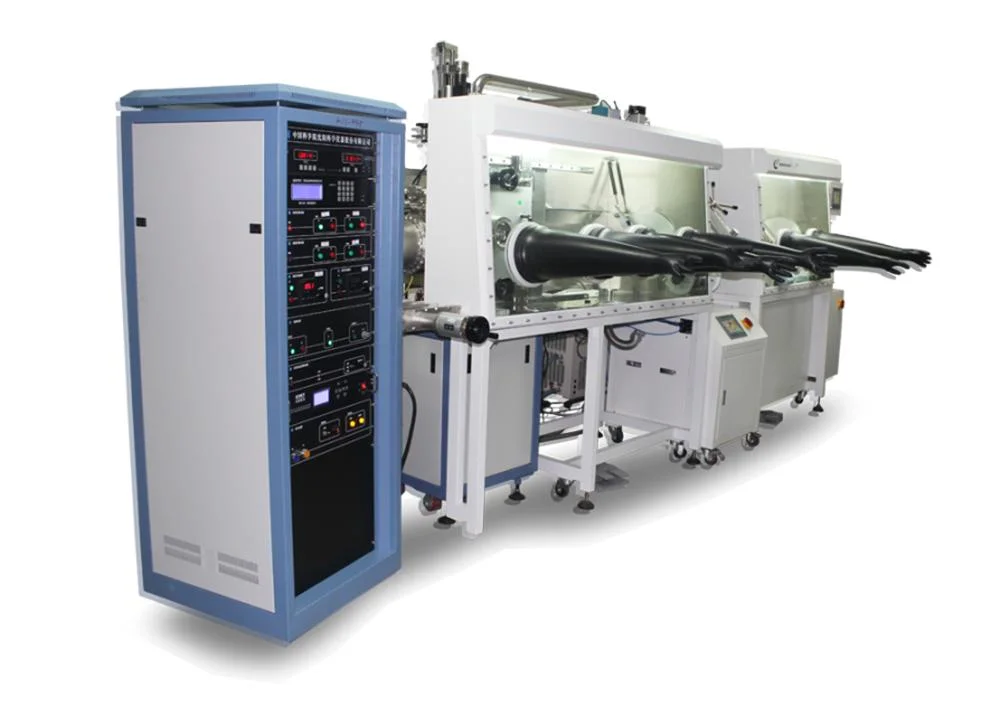

    High quality Single Working Station Vacuum Glove Box Battery Machine Gn-GB-1 Glove Box for Lithium Battery

    Product Description

    Single Working Station Vacuum Glove Box Battery Machine Gn-GB-1 glove Box for Lithium Battery

    Functions
    1,Closed recirculation: Inert gas recirculate through circulating fan and purifier in the glove box,get rid of water and oxygen continuously.
    2,automatic regeneration control:the materials used for getting rid of water and oxygen can be regenerated by program control.
    3,automatic cleaning:The replacement of the gas in the glove box is controlled by cleaning valves.
    4,The pressure in the box is controlled by PLC.It can be free set within +/-10mbar.If overtop +/-12mbar,automatic protection will start.
    5,Vacuum pump will start automatically when the system required.

    Unilateral operation, integration have simple columnar purification unit, controlled by PLC and touch screen operation.
    Vacuum pump, support, a sealing box, with sloping operating side and can removable
    Full front of glass window. Under the standard status,that is to say,the constant temperature of 20 degree,relative humidity is 65%,a standard atmospheric pressure,
    99.999% of inert gas source,empty box running, water oxygen index less than 1 ppm
    Working Voltage
    220V 50/60Hz, Single Phase
    Glove Box Chamber &
    Airlock Chamber
    * Case Material: Made of 304 stainless steel sheet
    * Inner Dimensions: 1220*750*900mm
    * Max. Positive Pressure: 810 Torr ( flowing gas only, not designed for vacuum )
    * Airlock Chamber with Airlift
    * Dimensions: OD360*600mm
    Gloves
    * Glove Port size: 70mm(Dia.)
    * 2'' Gloves included (with increased stretching, bending ability and tear strength, and offer strong resistance to aromatics,
    hydrocarbons, solvents, fats, and acids)
    * Clamps and sealing flanges included
    Transparent Front Panel
    * Front Panel made of transparent plastic
    * Dimension: 1200 mm(L) x 700mm(W)
    * Removable for putting in devices
    Purification System
    * Automatic moisture remove to < 1 ppm (Li-Ion battery assembling requires <11 ppm moisture)
    * Precision Humidity Analyzer with KF40 Flange is installed on the Purification System with accuracy +/-0.1 ppm
    * Regeneration Temperature Controller is built-in for automatically regenerating the filter
    * The automatic pressure control system is built in to keep the pressure at a constant level
    * PLC touch panel is included which can set and display the humidity and pressure level.
    * The control panel is removable, which can be placed anywhere for easy operation
    Purification Pipeline
    304 stainless steel, KF40 port
    Vacuum pump
    * Heavy-duty vacuum pump with filter is included for faster vacuum and removing moisture
    * Stainless steel vacuum bellow and valve are included
    Gasses Requirement
    * Working gasses: Atmospheric Gases, N2, Argon
    * Regeneration Gas: 95% N2 + 5%H2
    * One float meter built on the front of a mobile cart for accurate gas filling*Capacity: 90m3/h, frequency conversion
    *Specification:8 m3 /h(12 m3 /h optional),Rotary pumpoil mist filter
    Leakage Rate in Glove Box Chamber
    < 3 Torr/hour
    Warranty
    * One-year limited warranty with lifetime support
    * Rusting and damage due to improper storage condition or maintenance are not covered by warranty

    Single Working Station Vacuum Glove Box Battery Machine Gn-GB-1 Glove Box for Lithium Battery
    Single Working Station Vacuum Glove Box Battery Machine Gn-GB-1 Glove Box for Lithium Battery Single Working Station Vacuum Glove Box Battery Machine Gn-GB-1 Glove Box for Lithium Battery

    Lithium Ion Battery Cathode Production Materials Licoo2 Lco Powder
    We could supply one stop solution ( turn key project) for you.

    1.Full set of lithium battery materials,including :
    LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

    2.Full set of lithium battery equipments,for example:
    mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

    3.Full set of lithium battery technology.
    we can design the laboratory and production line,according to customer's request.
