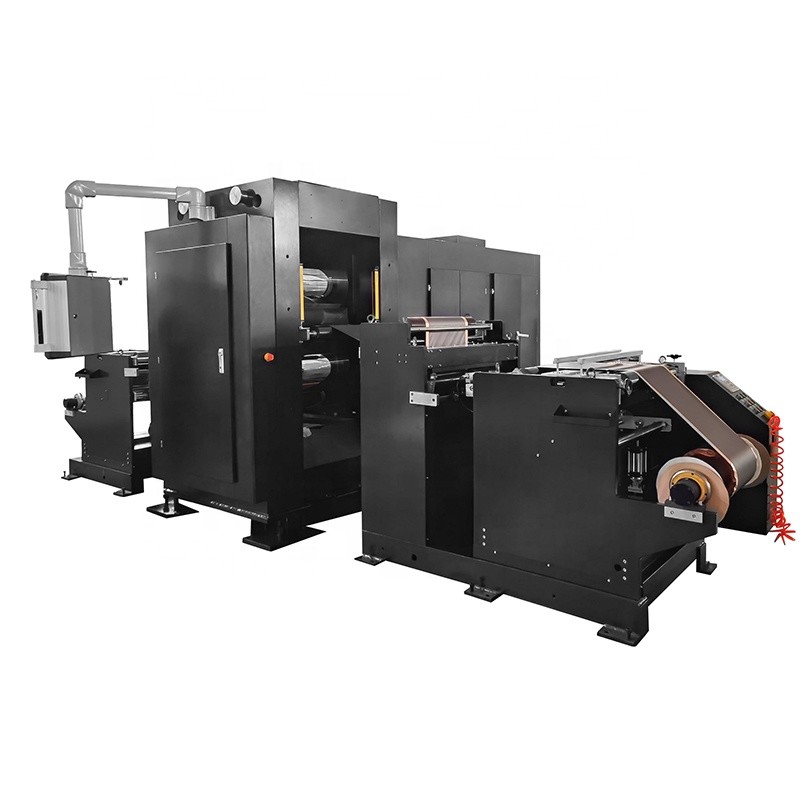

Roller Pressing Machine Continuous Hydraulic Calendaring Pressing Machine Battery Gigafactory Automatic Production Line

Rolling machine is the main equipment in continuous rolling production line. It is composed of rigid frame, roll pair, motor reducer, gas-liquid supercharging system, clearance adjustment system, electrical control system, feed plate and roller surface cleaning mechanism.

The main function is made electrode under the rolling,to bring the electrode to a proper density. And according to the coating thickness to achieve the electrode thickness requirements. This equipment adopts the lead screw wedge iron gap adjustment structure to adjust the roller gap, and the linear speed is adjusted by frequency converter to realize stepless speed regulatio.

Specification:

1)Power requirement::380V/50Hz. Power: 10KW

2)Compressed air:pressure 0.5Mpa~0.7Mpa. Flow rate:0.04M3/min

3)Total equipment weight: about 4.0T

Equipment installation ground load requirements: >2.5T/m2,and place cushions at the bottom of the equipment

4)Equipment size:Roller part about2600mm L×750mm W×1500mm H

Our Services

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.

Gelon Teams since 2003 engaged in battery business,Enterprises from the initial Ni-MH battery production extends to the production of lithium ion battery materials and battery . Most of the senior management staffs graduated from China's most famous electrochemical professional --CENTRAL SOUTH UNIVERSITY, from which created a lot of leaders in Chinese lithium ion battery industry such as Mr ChuanFu Wang(BYD),Mr XinDe Xia, Mr KaiHua Xu, Professor GuoRong Hu and XinHai Li Etc. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. Gelon Focus on manufacturing and selling of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LFP), Lithium Manganese Dioxide(LMO), Lithium Cobalt Oxide(LCO), Lithium Nickel Manganese Cobalt Oxide(NMC), Lithium Nickel Aluminum Oxide(NCA) ,Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) , Separator & Other accessories (SBR CMC NMP PVDF,Sup-Li,Al&Ni Tabs )etc for new power lithium ion batteries. Meanwhile, we have our own lithium ion battery factory who mainly produces lithium ion battery for camera, mobile, EV application. Based on our battery production line, we can offer all services (Raw Materials, Equipments, Production line design &Technology, etc. ) for full set of equipments to help clients to set up Lab & Pilot line for lithium ion battery. Bynow, Gelon have finished many turn key project in Bolivia,Indonesia, Indian, Russia,Turkey and South Africa We have a more than ten years professional and experienced exporting teams to supply perfect services for all our customers. We are confident on our quality and service.And ensure to offer the best services based on our specialty and empressement. Our Aim is to be the comprehensive company dealing with One-Stop services for Lithium ion battery in the world. Our Business Philosophy: You choose us, We promise you What we offer to you,are what we are using Integrating the quality resources in China, delivering the best service and products to you. The best product we can provide, is our sincerity and reliability.
