    2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine

    2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer High Speed Double Planetary Mixing Machine for Lithium Battery Production

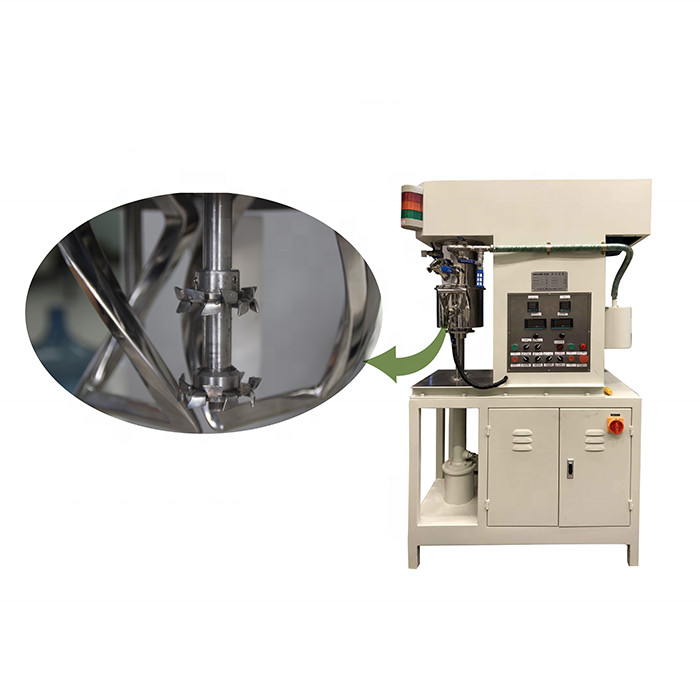

    GN-PM-20L Vacuum Planetary Mixer with effective 20-liter containers .It is a set of scattered, mixed multifunctional efficient equipment for lithium-ion polymer battery fluid and liquid lithium ion battery fluid, electronic battery paste.The main include disperser scraper paddle, mixing bucket, stir cover, stirring power head, temperature control device, the body lifting devices, lock barrel device and control system and other components.
    Barrel part
    lDesign Volume: 28L; working volume: 8-20L; lTank Liner Size: φ350mm × 300mm;
    lContainer material: contact with material 304
    Mixing part
    lWorking frequency: 5-50hz lStirring power: 2.2kw
    lRotor speed: 7-79rpm
    lPlanetary box speed: 4-49 rpm
    lImpeller diameter: 194mm
    Power1.85KW
    Working voltage380V/50Hz,3 phase
    Effective volume2L,5L,10L,20L,30L,60L
    Main shaft speed0-65rpm,can be adjustable
    Stirring speed0-105rpm,can be adjustable
    Dispersing speed0-3000rpm,can be adjustable
    Mixing blades3 axis planetary mixing 2 stirring blade
    1 dispersing blade
    1 spatula
    Accessoriesvacuum pump and water chiller can be included
