Gelon Manufacture Large Double Planetary Mixing Machine for Lithium
Ion Battery Production Equipment
Product Description

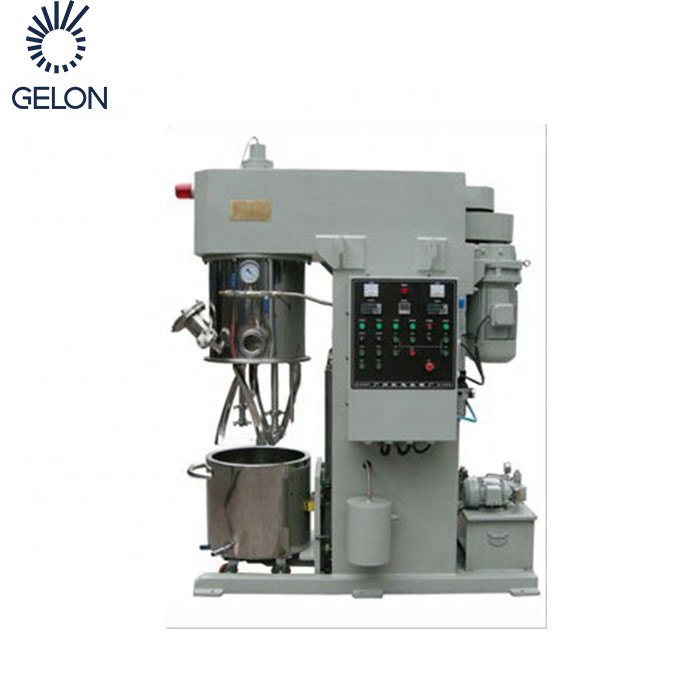

GN-PM-20L Vacuum Planetary Mixer with effective 20-liter containers
.It is a set of scattered, mixed multifunctional efficient
equipment for lithium-ion polymer battery fluid and liquid lithium
ion battery fluid, electronic battery paste.The main include
disperser scraper paddle, mixing bucket, stir cover, stirring power
head, temperature control device, the body lifting devices, lock
barrel device and control system and other components.
Our double planetary dispersing power mixer has combined the
theories of the traditional double planetary mixer and high speed
dispersing mixer, to create a new, high-efficient machine, at
present it is widely used in new energy fields.
As per the character of Lithium-ion power cells and electronics
capacity, we developed new reinforced machinery applied to the dry
powder process for making Lithium power positive&negative
electrode slurry , based on the traditional planetary mixers and
dispersing power mixers, with high rotation speeds and larger
torque. During the design, our company fully considered factors
such as the rotational speed of stirrers, mixing power, linear
dispersion speed, high viscosity slurry resistance reduced by
reasonable twist stirrer shape, and distribution of turbulence
intensity inside of the vessel to create the more efficient and
more stable double planetary power mixer and the reinforced twist
stirrers can deal with high viscosity battery slurry. The stirrer
characters for the power mixer is that - the revolution and
rotation of twist stirrer is clockwise -meanwhile rotation for high
speed dispersing is anticlockwise,whose speed is adjustable to make
the materials move complicatedly under shearing,kneading and
dispersing,effectively eliminates all dead point and climbing
phenomena during mixing. Three sets of mechanical seals, coupled
together with soft and silence sealing to make sure reliable seal
performance. On materials temperature control, it’s used with
unique thermoscope technology-planetary frame and thermoscope rod
for revolution. Pt100 temperature measurement sensors have direct
contact with material, greatly increasing accuracy of temperature
measurement, response is much faster, error is reduced to only
±0.2℃.
The machine is comprised of the base, crossbeam, upright column ,
sealing cover ,vessel, transmission system and electronic control
system.
Main Technical Parameter
| 1 | Vacuum Degree | -0.098MPa |
| 2 | Structure | Single arm type |
| 3 | Rotation Speed r/min | Revolution:0~51r/min,Rotation:0~102r/min(Frequency-converting
0~50Hz); High speed:0~8800r/min(Frequency-converting 0~70Hz); |
| 4 | Slow Shaft | 2 shafts with Twist type Stirrer; |
| 5 | Fast shaft | Double fast shaft with two sets Φ50 dispersion disk |
| 6 | Lifting mode | Liner guide rail vessel motor-driven lifting |
| 7 | Lifting height | 210mm |
| 8 | Location of vessel | There are four pieces of curve shape position plate at the front
and rear for fixture,with convex verge structure , to make sure the
center position |
| 9 | Noise | Measured outside 1M of the equipment, noise ≤80dB |
| 10 | Mode of Temperature Measurement | Temperature testing head touches the material,1/3 far away from the
vessel bottom, revotion motion,inner sets electric transfer device |
| 11 | Electric power | AC:3phase*380V,50Hz; |
| 12 | Dimension | L1350W800H1550(mm); |
| 13 | Weight | Abt 570kg |
| Type | 100L | 200L | 300-500L | 1000L |
| Design Volume(L) | 130 | 265 | 650 | 1258 |
| Effective Volume (L) | 100 | 200 | 500 | 1000 |
