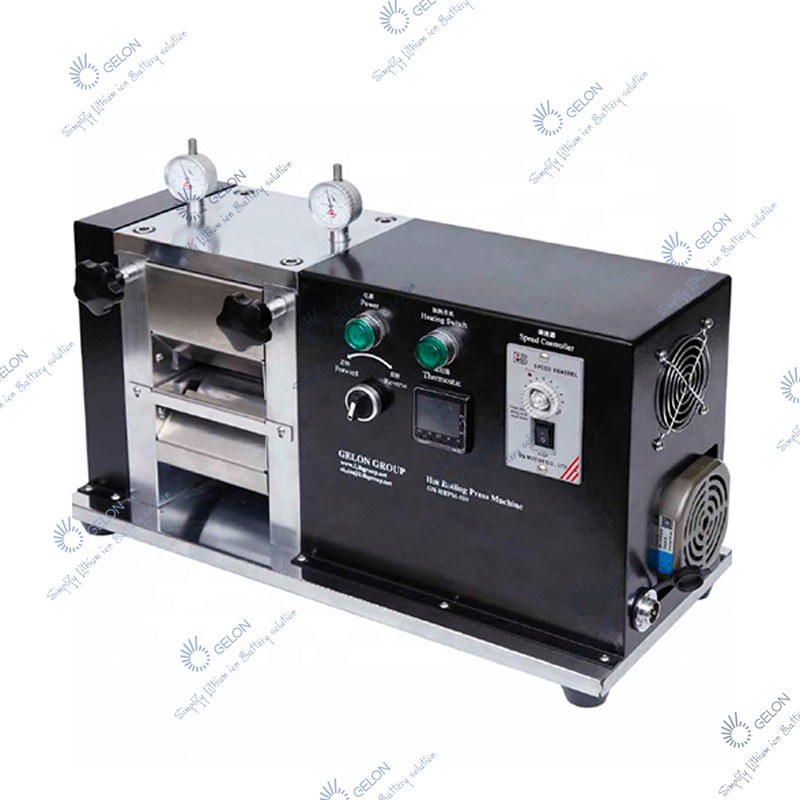

Laboratory Desktop Heating Rolling Adjustable Thermostat Temperature Control Press Calender Machine

Mainly for battery materials in the laboratory, a small amount of gold and silver and other precious metals adjustable, copper and aluminum and other nonferrous materials under certain temperature electric hot rolling, rolling thickness, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.

Main Features:

* Heating rolling, adjustable thermostat temperature control and digital display.

* Optional with or without heating to work.

* Roll hardness, and surface hard chrome plated, hardness up to HRC62 and rust.

* Use the ramp to adjust compression gap, since petty good, high precision adjustment.

* Rolling high precision cylindrical roller ≤±2um.

* Vertical design, easy to slice with a material feed rolling.

* The use of gear rotation, to achieve the roll repression.

* Tablet thickness, the speed can be adjusted, exquisite appearance.

* Electric rolling, forming automated, reversing operation.

* Small size, easy to operate, flexible and quick.

* Roll diameter: 2-Φ100mm

* Roll hardness: HRC62

* Rolls finish: more than 0.8

* Cylindrical roller ≤ ± 2um.

* Rolling thickness: 0 ~ 2mm gap can be adjusted

* Rolling width: 0 ~ 150mm (With Customers Size)

* Place the roll: vertically

* Thickness of the tablets, the speed, the heating temperature can be adjusted.

* Rolling temperature: 130 ℃ adjustable digital display value

* Operation: Electric

* Voltage and frequency: AC220V / 50Hz

* Power: 1.8KW

* Feed rate: 0 ~ 40mm / s, the speed can be adjusted

* Dimensions: L500mm * W220mm * H320mm

* Weight: 85KG

It can be customization
